BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING, Instrument Cluster Operation Button -E493-: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the instrument cluster trim. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .

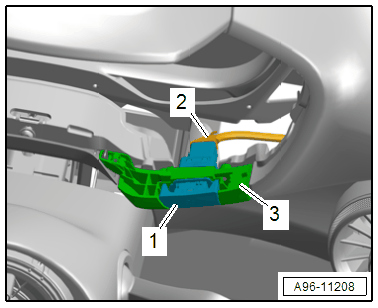

-- Disconnect the connector -2-.

GWWA96-11208Courtesy of AUDI OF AMERICA, LLC

-- Remove the button -1- from the mount -3-.
