Socket -U-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Detach the left luggage compartment side trim panel and move it to the side. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

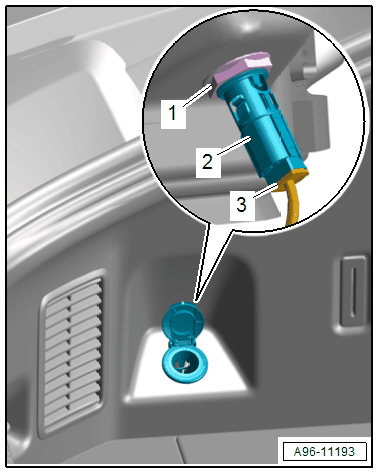

-- Disconnect the connector -3-.

GWWA96-11193Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -1-.

-- Remove the 12 V socket -2- from the luggage compartment side trim panel.
