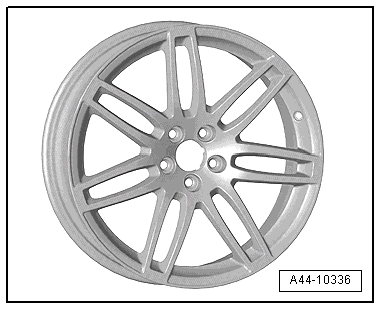

Rim - TT- RS - 9 J X 20
WARNING: This page is about a different variant/trim than selected.
NOTE:
Order the part number for use on the TT-RS only in "Parts Information Model TT-RS".
NOTE:
The part number and illustration of the following rims are examples. Refer to the "Parts Information" for assistance to order the correct rims.
Pay attention when installing Audi original accessories-wheels to the notes in the "Parts Information".
| Nm | Wheel Bolts | Hole circle in mm | Wheel hub in mm |
|---|---|---|---|
| 120 | 5 | 112 | 57 |
| 8J0 601 025 BA | |
| Aluminum rim- PR number | F08 |
| Dimension: | 9 J x 20 H2 |
| Offset in mm: | 52 |
| Wheel load in kg: | 575 |
