Overview - Starter, Vehicles With Dual-Clutch Transmission Version 2

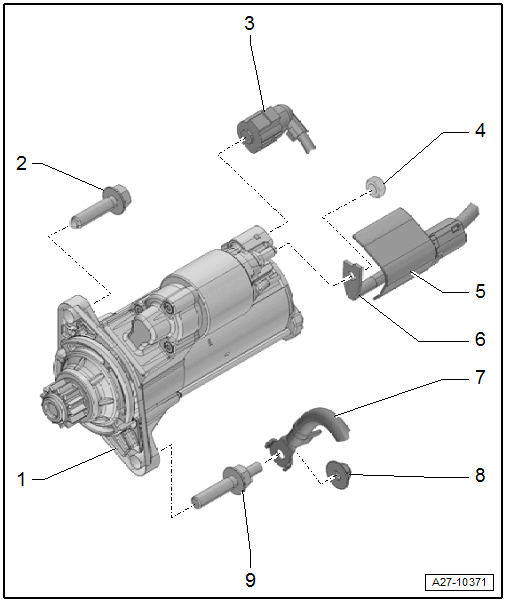

Fig 1: Exploded View Of Starter

Courtesy of AUDI OF AMERICA, LLC

1. Starter
   • Removing and Installing. Refer to STARTER, REMOVING AND INSTALLING .
2. Bolt
   • Tightening Specification
     • M10 threaded connection - 40 Nm
     • M12 threaded connection - 80 Nm
   • There are different versions. Refer to the Parts Information.
3. Connector
4. Nut
   • 15 Nm
5. Cap
6. 30/B+ Terminal
7. Ground Wire
8. Nut
   • 20 Nm
9. Bolt
   • Tightening Specification
     • M10 threaded connection - 40 Nm
     • M12 threaded connection - 80 Nm
   • There are different versions. Refer to the Parts Information.
