GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Switch off the ignition.
-- Lift the luggage compartment floor covering by the handle and fold it forward.
-- Remove the right insert for the vehicle tool kit.

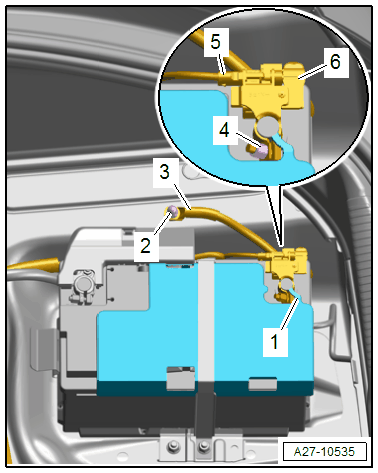

-- If equipped, open the cover -1- on the battery negative terminal.
-- Loosen the nut -4- several turns and remove the battery ground cable terminal clamp from the battery terminal.
-- Disconnect the connector -5-.
-- Remove the nut -2- and remove the ground cable -3- with the Battery Monitoring Control Module -J367- -6-.
