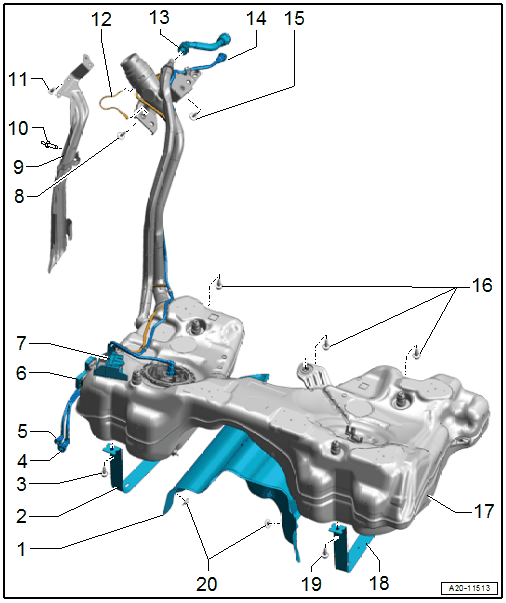

Overview - Fuel Tank, Market-Specific North AMERICA
WARNING: This page is about a different variant/trim than selected.
- Heat Shield
- For the fuel tank
- Right Mounting Strap
- Bolt
- 20 Nm +90°
- Replace after removing.
- Fuel Line
- To the engine
- Do not kink
- Clipped to the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bleeder Line
- To the EVAP Canister Purge Regulator Valve 1 -N80-
- Do not kink
- Clipped to the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Fuel Tank Leak Detection Control Module -J909-
- Bracket
- For Fuel Pump Control Module -J538-
- Bolt
- 8 Nm +90°
- For securing the fuel filler neck
- For discharging electrostatic charge. Refer to Figure.
- Replace after removing.
- Heat Shield
- Rivet
- Bolt
- 2 Nm
- Ground Connection
- For the fuel filler neck
- For discharging electrostatic charge. Refer to Figure.
- Bleeder Line
- To the EVAP Canister
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bleeder Line
- To the EVAP Canister
- Do not kink
- Clipped to the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bolt
- 8 Nm +90°
- Replace after removing.
- Bolts
- 20 Nm +90°
- Replace after removing.
- Fuel Tank
- Removing and Installing. Refer to FUEL TANK, REMOVING AND INSTALLING, ALL WHEEL DRIVE VEHICLES .
- Left Mounting Strap
- Bolt
- 20 Nm +90°
- Replace after removing.
- Nut
- 2 Nm
- For the heat shield
