Ground Connection For Discharging Electrostatic Charge, Routing And Securing
WARNING: This page is about a different variant/trim than selected.
WARNING:
Risk of explosion due to electrostatic charge.
- After installing, check the electrical connection on fuel filler neck metal ring to a bare spot on the body using an ohmmeter.
- Specified value: approximately 0 Ω.

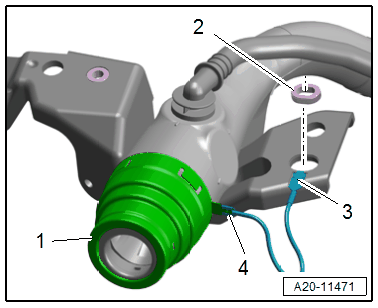

-- Route the ground connection as illustrated.
-- Make sure the following connectors are secure:
- The ground connection connector -4- must be firmly attached to the metal ring -1- on the fuel filler neck.
- The ground connection contact -3- must be engaged in the hole on the fuel tank and secured with a spacer -2-.
Fuel Filler Neck Ground Connection, North America Market-Specific
-- Make sure the following connectors are secure:
- The ground connection connector -2- must be firmly attached to the metal ring -1- on the fuel filler neck.
- The ground connection contact -3- must be engaged in the hole on the fuel tank and secured with a spacer -4-.
