Overview - Fuel Delivery Unit/Fuel Level Sensor, Vehicles With 4-Cylinder Engine And AWD

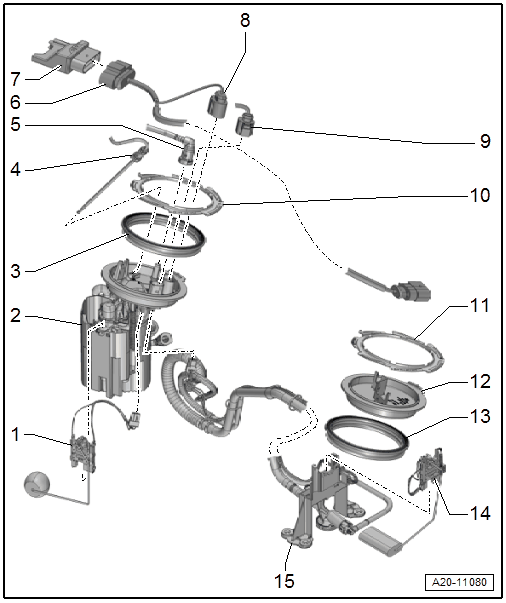

Fig 1: Exploded View Of Fuel Delivery Unit/Fuel Level Sensor, Vehicles With 4-Cylinder Engine & (AWD)

Courtesy of AUDI OF AMERICA, LLC

1. Fuel Gauge Sensor -G-
   • Check in Guided Fault Finding  using the Vehicle Diagnostic Tester.
   • Removing and Installing. Refer to Fuel Level Sensor -G-, REMOVING AND INSTALLING .
2. Fuel Delivery Unit
   • With the Transfer Fuel Pump -G6-
   • With integrated fuel filter; the fuel filter cannot be replaced separately
   • Check the electric fuel pump in Guided Fault Finding  using the Vehicle Diagnostic Tester.
   • Removing and Installing. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING, AWD VEHICLES .
   • Fill the vehicle with at least five liters of fuel after installing
3. Seal
   • Replace after removing.
   • Install dry
4. Not Installed
5. Fuel Line
   • To the engine
   • Do not kink
   • Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
6. Connector
   • For Fuel Pump Control Module -J538-
   • Pull on the connector to make sure it is engaged correctly and securely.
7. Fuel Pump Control Module -J538-
   • Check in Guided Fault Finding  using the Vehicle Diagnostic Tester.
   • Removing and Installing. Refer to Fuel Pump Control Module -J538-, REMOVING AND INSTALLING .
8. Connector
   • For Transfer Fuel Pump -G6-
   • Pull on the connector to make sure it is engaged correctly and securely.
9. Connector
   • For Fuel Gauge Sensor -G- and Fuel Gauge Sensor 2 -G169-
   • Pull on the connector to make sure it is engaged correctly and securely.
10. Locking Ring
    • 110 Nm
    • Loosen and tighten using the Wrench - Fuel Sending Unit: T10202
11. Locking Ring
    • 110 Nm
    • USA and Canada market versions: not equipped
    • Loosen and tighten using the Wrench - Fuel Sending Unit: T10202
12. Sealing Flange
    • USA and Canada market versions: not equipped
    • Removing and Installing. Refer to Fuel Level Sensor 2 -G169-, REMOVING AND INSTALLING .
13. Seal
    • USA and Canada market versions: not equipped
    • Replace after removing.
    • Install dry
14. Fuel Level Sensor 2 -G169-
    • Check in Guided Fault Finding  using the Vehicle Diagnostic Tester.
    • Removing and Installing. Refer to Fuel Level Sensor 2 -G169-, REMOVING AND INSTALLING .
    • USA and Canada market versions: Fuel tank without a left installation opening, removing the fuel level sensor 2 is not possible
15. Mount with Suction Jet Pump
    • No replacement part
    • Welded to the fuel tank
    • Function of suction jet pump. Refer to SUCTION JET PUMP, REMOVING AND INSTALLING .
