Fuel Level Sensor -G-, REMOVING AND INSTALLING: Removing

-- Observe the safety instructions. Refer to SAFETY PRECAUTIONS .

-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Remove the fuel delivery unit. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .

FWD Vehicles:

Fig 1: Identifying Fuel Level Sensor And Retainers

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1- on the sealing flange by unlocking the connector safety catch.

-- Disengage and free up the wires on the bracket -arrow-.

-- Release the tab on the retainers -3 and 4- and at the same time, remove the Fuel Gauge Sensor -G- -2- upward.

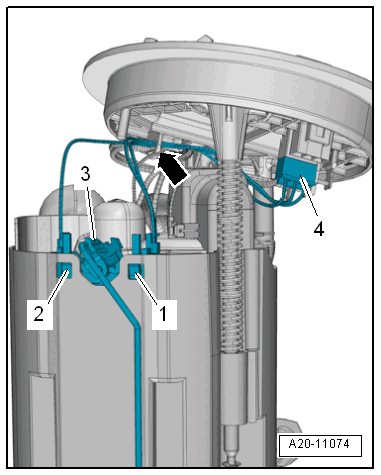

Vehicles with 4-cylinder engines and AWD:

Courtesy of AUDI OF AMERICA, LLC

-- Release the connector safety catch, and disconnect the connector -4- on the sealing flange.

-- Disengage and free up the wires on the bracket -arrow-.

-- Release the tab -1 and 2- on the retainers and at the same time remove the Fuel Gauge Sensor -G- -3- upward.

Vehicles with 5-Cylinder Engine:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2- from the sealing flange.

-- Disengage and free up the wires on the bracket.

-- Release the retainers -1 and 3- -A arrows- and press out the Fuel Gauge Sensor -G- upward -arrow B-.
