OVERVIEW - EVAP SYSTEM, VEHICLES WITH Fuel Tank Pressure Sensor -G400-
WARNING: This page is about a different variant/trim than selected.

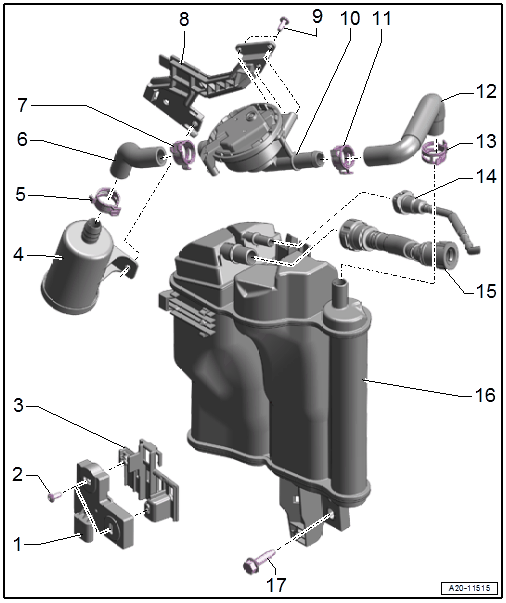

- Fuel Tank Leak Detection Control Module -J909-
- Component location: At the right on the fuel tank
- Removing and installing. Refer to Fuel Tank Leak Detection Control Module -J909-, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Quantity: 2
- Bracket
- For Fuel Tank Leak Detection Control Module -J909-
- Air Filter
- For the leak detection system
- Component location: at the right rear in the wheel housing under the wheel housing liner
- Clipped on the EVAP canister -16-
- Removing and installing. Refer to EVAP SYSTEM AIR FILTER, REMOVING AND INSTALLING .
- Hose Clamp
- Must be appropriate for the model type. Refer to the Parts Information.
- Hose
- Hose Clamp
- Must be appropriate for the model type. Refer to the Parts Information.
- Bracket
- For Fuel Tank Pressure Sensor -G400-
- Bolt
- 1.8 Nm
- Quantity: 2
- Fuel Tank Pressure Sensor -G400-
- Component location: at the right rear in the wheel housing under the wheel housing liner
- Removing and installing. Refer to Fuel Tank Pressure Sensor -G400-, REMOVING AND INSTALLING .
- Hose Clamp
- Must be appropriate for the model type. Refer to the Parts Information.
- Hose
- Hose Clamp
- Must be appropriate for the model type. Refer to the Parts Information.
- Vent Line
- To EVAP Canister Purge Regulator Valve 1 -N80-
- Clipped to the fuel tank
- Connector Couplings, Separating and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Vent Line
- To the fuel tank
- Connector Couplings, Separating and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- EVAP Canister
- Component location: at the right rear in the wheel housing under the wheel housing liner
- Removing and installing. Refer to EVAP CANISTER, REMOVING AND INSTALLING, VEHICLES WITH Fuel Tank Pressure Sensor - G400- / Fuel Tank Leak Detection Module - GX36- .
- Bolt
- 20 Nm
