OVERVIEW - EVAP SYSTEM, VEHICLES WITH Fuel Tank Leak Detection Module - GX36-

WARNING: This page is about a different variant/trim than selected.

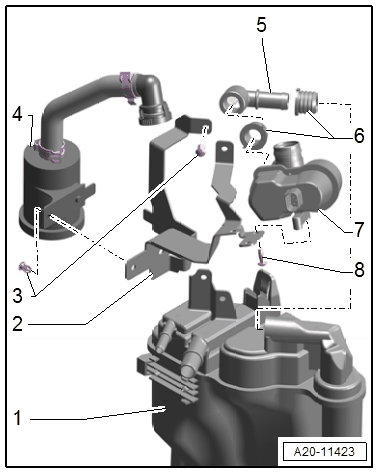

Fig 1: Exploded View Of Evap System, North American Vehicles With High-Voltage System
GWWA20-11423Courtesy of AUDI OF AMERICA, LLC
  1. EVAP Canister
  2. Bracket
  3. Expanding Clip
  4. Air Filter
  5. Connecting Piece
  6. Seal
  7. Fuel Tank Leak Detection Module - GX36-
    • With Leak Detection Pump -V144-
  8. Bolt
    • 1.8 Nm
