Fuel Tank Leak Detection Control Module -J909-, REMOVING AND INSTALLING: Removing

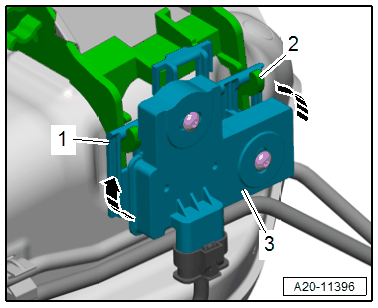

Fig 1: Fuel Tank Leak Detection Control Module -J909

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the bracket -1- for the control module from the mount -2- on the fuel tank.

-- To do this grasp the control module -3- by hand and carefully turn back and forth -arrows-, until the catches loosen.

-- Disengage the control module -2- with the bracket -4- from the catches and remove downward.

Fig 2: Safety Catch/Connector For Fuel Tank Leak Detection Control Module -J909

Courtesy of AUDI OF AMERICA, LLC

-- Release the connector safety catch and disconnect the connector -1-.

-- Remove the bolts -3 and 5- and the control module from the bracket.
