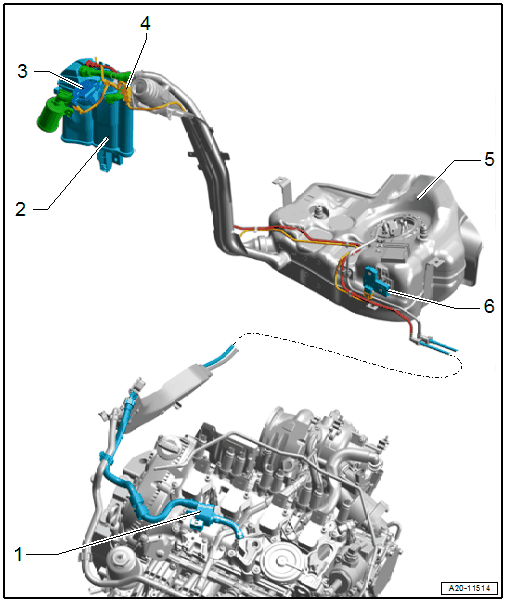

Connection Diagram - EVAP System, USA And CANADA Market-Specific
WARNING: This page is about a different variant/trim than selected.
 Courtesy of AUDI OF AMERICA, LLC
|
- EVAP Canister Purge Regulator Valve 1 -N80-
- EVAP Canister
- Fuel Tank Pressure Sensor -G400-
- Wiring Harness
- Fuel Tank
- Fuel Tank Leak Detection Control Module -J909-
