Telephone Baseplate -R126-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the front center console storage compartment. Refer to OVERVIEW - CENTER CONSOLE .

-- Release and disconnect the connectors from the Telephone Baseplate -R126-.

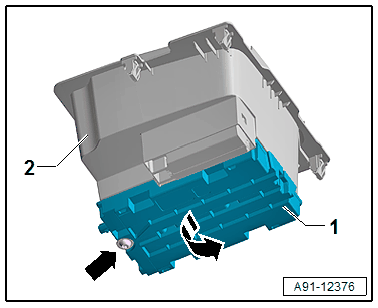

-- Remove the screw -arrow- from the Telephone Baseplate -R126- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Pivot the Telephone Baseplate -R126- -2- out of the hook in the direction of the -arrow- and remove it from the storage compartment -2-.
