Seat Belt Microphone Control Module, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
First the Seat Belt Microphone Control Module -J886- with the bracket must be removed.
NOTE:

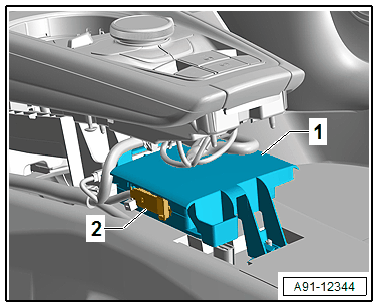

For a better view the Multimedia System Control Head -E380- is visible in the illustration.
-- Remove the bracket with the Seat Belt Microphone Control Module -J886- -1- upward from the securing bracket and threaded pin.
-- Release and disconnect the connector -2- on the Seat Belt Microphone Control Module -J886-.

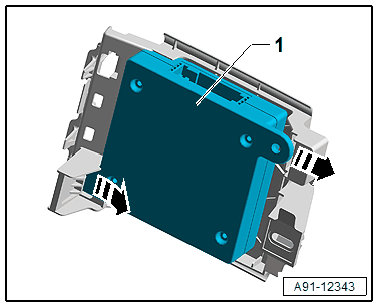

-- Remove the Seat Belt Microphone Control Module -J886- -1- in the direction of the -arrow- from the bracket.
