Overview - Telephone, AUDI Phone Box, 9ZE

The Telephone Baseplate -R126- (Audi phone box) is installed in the center console. The telephone is operated either by the Infotainment system MMI or by the Cellular Telephone -R54-.

The microphones for the Microphone Unit In Front Roof Module -R164- are integrated in the Front Interior Lamp -W1-. One microphone (Telephone Microphone -R38-) is directly connected with the Information Electronics Control Module 1 -J794-.

The connection to the cellular network takes place via the Telephone Antenna -R65-.

The antenna connection is located on the Cellular Telephone Amplifier -R86-.

9ZE - Audi Phone Box

Courtesy of AUDI OF AMERICA, LLC

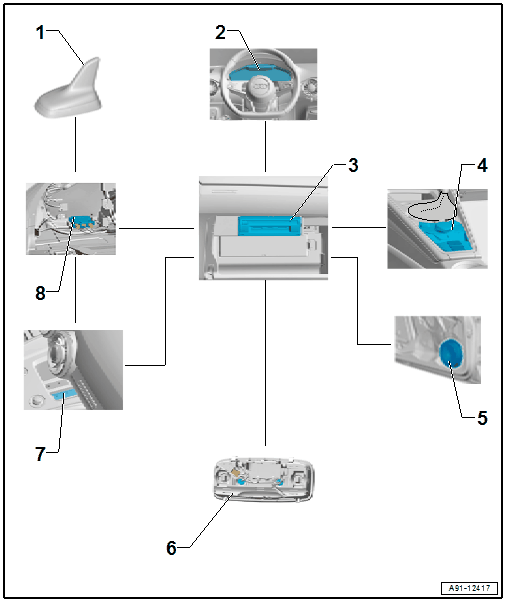

1. Telephone Antenna -R65-
2. Instrument Cluster Control Module -J285-, Display
3. Information Electronics Control Module 1 -J794- in the Glove Compartment
4. Multimedia System Control Head -E380- in the Center Console
5. Sound Systems
6. Telephone Microphone -R38-, Microphone Unit in Front Roof Module -R164- in the Front Interior Lamp -W1-
7. Telephone Baseplate -R126- with Cellular Telephone -R54- in the Center Console Storage Compartment.
8. Cellular Telephone Amplifier -R86- behind the Right Luggage Compartment Trim Panel

Antennas

9ZE - Audi phone box without Audi connect EL0:

• The Telephone Antenna -R65- is installed in the Roof Antenna -R216- on the Coupe/under the rear panel cover on the Roadster
• No LTE antennas (LTE antenna 1 -R297- /LTE antenna 2 -R306-) are installed

9ZE - Audi phone box with Audi connect EL3:

• The Telephone Antenna -R65- is installed under the rear bumper cover on the right side, Europe and Rest of World
• The Telephone Antenna -R65- is installed in the Roof Antenna -R216- on the Coupe/under the rear panel cover on the Roadster, USA
• The LTE Antenna 1 -R297- is installed in the Roof Antenna -R216- on the Coupe/under the rear panel cover on the Roadster, Europe and Rest of World
• The LTE Antenna 1 -R297- is installed under the rear bumper cover on the right side, USA
• The LTE Antenna 2 -R306- is installed under the rear bumper cover on the left side

Antenna, removing and installing. Refer to COMPONENT LOCATION OVERVIEW - ANTENNA SYSTEMS .

Fault Finding is performed using the "Guided Fault Finding"  on the Vehicle Diagnostic Tester.

Repairing Antenna Wires. Refer to GENERAL REPAIR INFORMATION .

Notes on Bluetooth Technology

A standardized radio connection is used for data transfer between the Information Electronics Control Module 1 -J794- and Cellular Telephone -R54- - Bluetooth Technology.

An additional transmitter/receiver unit is installed in the Information Electronics Control Module 1 -J794-. A Bluetooth Antenna -R152- connects the Information Electronics Control Module 1 -J794- and the Cellular Telephone -R54- so that the Cellular Telephone -R54- can be operated without a wire connection.

The range of the radio connection is approximately 10 m.

Notes on MOST Bus

The optical Data Bus "MOST Bus" is used in addition to the CAN Bus.

A fiber-optic cable is used. Fiber-optic cables are routed inside corrugated tubes for protection.

Replace the complete fiber-optic cable if possible.

The front surface of the connectors must not be contaminated.

If disconnecting the connectors: Attach the Fiber-Optic Repair Set - Connector Protective Caps: VAS 6223/9  .

When routing fiber-optic cables, make sure not to go below the minimum bending radius of 25 mm. Do not crush or kink the fiber-optic cables.

Repairing fiber-optic cables. Refer to GENERAL REPAIR INFORMATION .
