Overview - Microphone Unit, Roadster

The microphone unit is comprised of the Microphone Unit in Front Roof Module -R164- and the Seat Belt Microphone Control Module -J886- with the seat belt microphone.

The Microphone Unit In Front Roof Module -R164- in installed in the Front Interior Lamp -W1-. Up to three microphones may be installed, depending on the equipment.

One microphone (Interior Microphone -R74-) is connected directly to the Digital Sound System Control Module -J525-. The other microphone (Telephone Microphone -R38-) is connected with the Information Electronics Control Module 1 -J794-.

The Microphone Unit In Front Roof Module -R164- located in the Front Interior Lamp -W1- can only be replaced as a complete unit. It is not possible to replace individual microphones (Interior Microphone -R74- or Telephone Microphone -R38-).

Courtesy of AUDI OF AMERICA, LLC

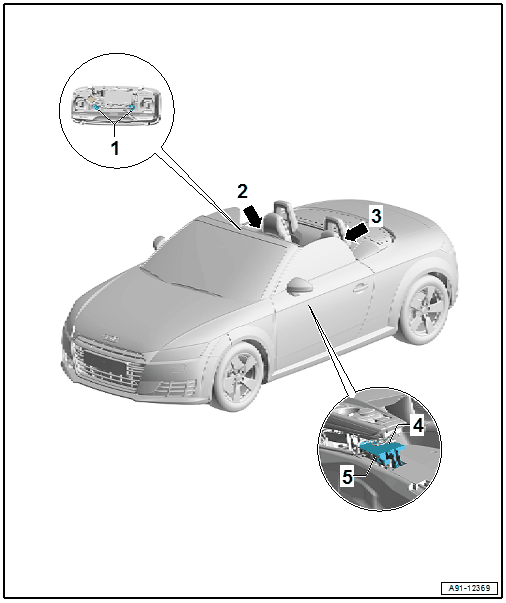

1. Microphone Unit in Front Roof Module -R164-
   • Connector assignment. Refer to Fig 1.
   • Removing and installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
2. Right Seat Belt Microphone
   • Cannot be replaced individually
   • Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
3. Left Seat Belt Microphone
   • Cannot be replaced individually
   • Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
4. Bracket
5. Seat Belt Microphone Control Module -J886-
   • Connector assignment. Refer to the appropriate Wiring Diagram.
   • Removing and installing. Refer to SEAT BELT MICROPHONE CONTROL MODULE, REMOVING AND INSTALLING .

Microphone Unit in Front Roof Module R164

Fig 1: Microphone Unit in Front Roof Module -R164-

Courtesy of AUDI OF AMERICA, LLC

1. Interior Microphone -R74- Black, to the Digital Sound System Control Module -J525-
2. Telephone Microphone -R38- Gray, to the Seat Belt Microphone Control Module -J886-
3. 4-Pin Connector -T4-

Connector assignment. Refer to Figure.

Removing and installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .

The Seat Belt Microphone Control Module -J886- is located under the center console. The seat belt microphone and the Telephone Microphone -R38- is connected with the Seat Belt Microphone Control Module -J886-.

The Seat Belt Microphone Control Module -J886- evaluates the signal and transmits the best signal to the Information Electronics Control Module 1 -J794-.

Courtesy of AUDI OF AMERICA, LLC

1. Seat Belt Microphone Control Module -J886-
2. Information Electronics Control Module 1 -J794-
3. CAN-Bus, Infotainment
4. Driver Microphone 1 -R224-
5. Driver Microphone 2 -R225-
6. Driver Microphone 3 -R226-
7. Telephone Microphone -R38-, Microphone Unit in Front Roof Module -R164-
8. Front Passenger Microphone 1 -R227-
9. Front Passenger Microphone 2 -R228-
10. Front Passenger Microphone 3 -R229-

Connector assignment. Refer to the appropriate Wiring Diagram.

Removing and installing. Refer to SEAT BELT MICROPHONE CONTROL MODULE, REMOVING AND INSTALLING .
