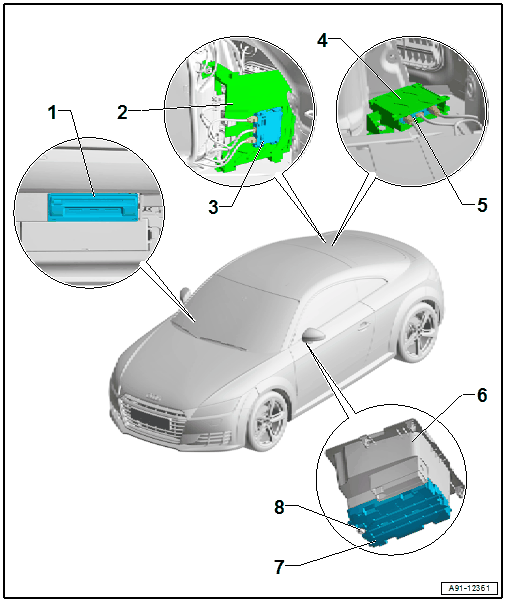

Component Location Overview - Telephone System
WARNING: This page is about a different variant/trim than selected.
- Information Electronics Control Module 1 -J794-
- Connector assignment. Refer to the appropriate Wiring Diagram.
- Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Bracket
- Not for North America
- On the TV Tuner -R78-
- Cellular Telephone Amplifier -R86-
- Bracket
- For only Cellular Telephone Amplifier -R86-
- Cellular Telephone Amplifier -R86-
- Connector assignment. Refer to the appropriate Wiring Diagram.
- Removing and installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING .
- Center Console Storage Compartment
- Removing and installing: Refer to OVERVIEW - CENTER CONSOLE
- Telephone Baseplate -R126-
- Audi phone box
- Removing and Installing. Refer to Telephone Baseplate -R126-, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
