Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING, Cellular Telephone Amplifier -R86- BRACKET: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the luggage compartment right side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

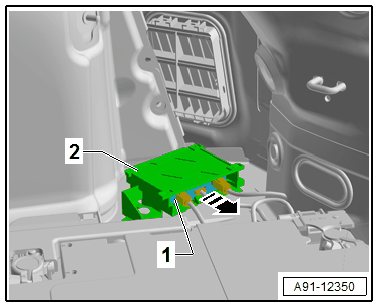

The Cellular Telephone Amplifier -R86- -1- is locked into place in the bracket -2-.
-- Release and disconnect the connectors from the Cellular Telephone Amplifier -R86- -1-.
-- Press the catch on the bracket and remove the Cellular Telephone Amplifier -R86- -1- in the direction of the -arrow- from the bracket -2-.
