TV Tuner, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Disconnect and remove all connectors from the TV Tuner -R78-.

-- Insert the Fiber-Optic Repair Set - Connector Protective Caps: VAS 6223/9 -1- onto the MOST bus connector -2-.

Fig 1: Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of AUDI OF AMERICA, LLC

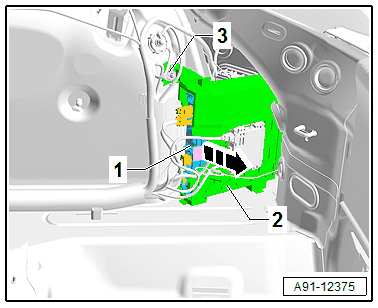

-- Press the catches -arrow- on the bracket -2- outward.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the TV Tuner -R78- -1- from the bracket -2-.

Remove the bracket -2- by loosening the nut -3-.
