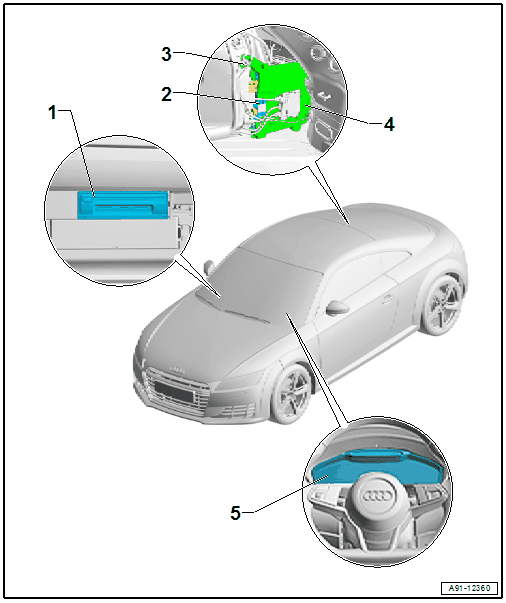

Component Location Overview - TV System
WARNING: This page is about a different variant/trim than selected.
- Information Electronics Control Module 1 -J794-
- Connector Assignment. Refer to the appropriate Wiring Diagram.
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- TV Tuner -R78-
- Connector Assignment. Refer to the appropriate Wiring Diagram.
- Removing and Installing. Refer to TV TUNER, REMOVING AND INSTALLING .
- Nut
- 3 Nm
- Bracket
- Instrument Cluster Control Module -J285-, Display
- Connector Assignment. Refer to the appropriate Wiring Diagram.
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
