Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING, 9VD/9VS: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
-- Release and disconnect the connector from the Left Front Bass Speaker -R21-.

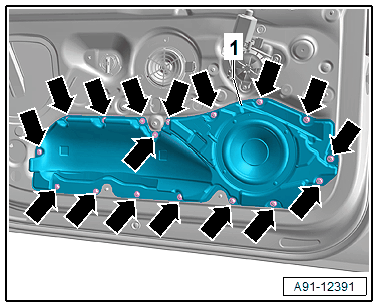

-- Remove the bolts and nuts -arrows- from the Left Front Bass Speaker -R21- -arrows-.
-- Remove the Left Front Bass Speaker -R21- -1- from the door.
