Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING, 8RE/8RM: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

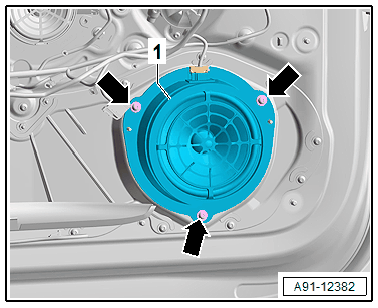

-- Release and disconnect the connector from the Left Front Bass Speaker -R21- -1-.
-- Remove the bolts -3- from the Left Front Bass Speaker -R21- -arrows-.
-- Remove the Left Front Bass Speaker -R21- -1- from the door.
