Front Midrange Speaker, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Release and disconnect the connector from the Left Front Midrange Speaker -R103-.

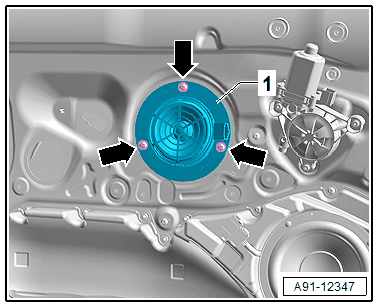

GWWA91-12347Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -arrows- from the Left Front Midrange Speaker -R103- -1-.

-- Remove the Left Front Midrange Speaker -R103- -1- from the door.
