Component Location Overview - Sound System, Roadster
WARNING: This page is about a different variant/trim than selected.

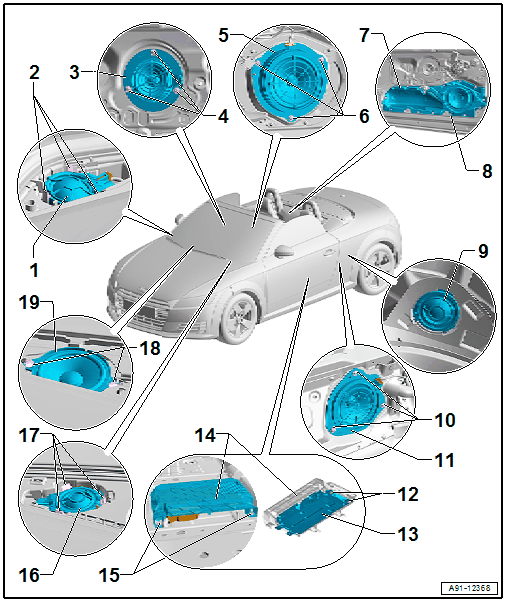

- Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-
- Removing and installing. Refer to Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, REMOVING AND INSTALLING .
- Retainers
- Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104-
- Removing and installing. Refer to FRONT MIDRANGE SPEAKER, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Quantity: 3
- Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, 8RE/8RM
- Removing and installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING, 8RE/8RM .
- Bolt
- 3 Nm
- Quantity: 3
- Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, 9VD/9VS
- Removing and installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING, 9VD/9VS .
- Bolt/Nut
- 3 Nm
- Nut: quantity 3
- Bolt: quantity 14
- Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-
- Removing and installing. Refer to Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-, REMOVING AND INSTALLING, ROADSTER .
- Bolt
- 3 Nm
- Quantity: 3
- Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-
- Removing and installing. Refer to Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-, REMOVING AND INSTALLING, ROADSTER .
- Bolt
- 3 Nm
- Quantity: 2
- Digital Sound System Control Module -J525-, 9VS
- Connector assignment. Refer to the appropriate Wiring Diagram.
- Removing and installing. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .
- Bracket
- Nut
- 3 Nm
- Quantity: 2
- Center Speaker 2 -R219-, 9VS
- Removing and installing. Refer to Center Speaker 2 -R219-, REMOVING AND INSTALLING, 9VS .
- Catch
- Bolt
- 2 Nm
- Quantity: 2
- Center Speaker -R208-, 9VD/9VS
- Removing and installing. Refer to Center Speaker -R208-, REMOVING AND INSTALLING, 9VD/9VS .
