Rearview Camera -R189-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
The Rearview Camera -R189- has a trailing cable. The vehicle wiring harness couplings are located in the rear lid.
-- Remove the rear lid trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

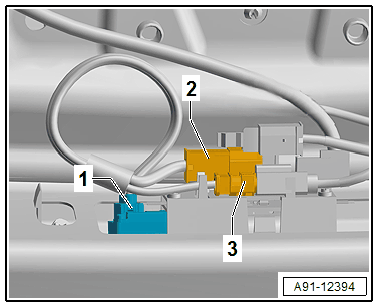

-- Unlock and disconnect the connectors -2 and 3-.

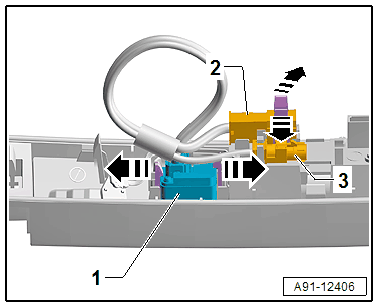

The Rearview Camera -R189- -1- is engaged in the grip piece.
-- Remove the grip piece. Refer to OVERVIEW - REAR LID .
