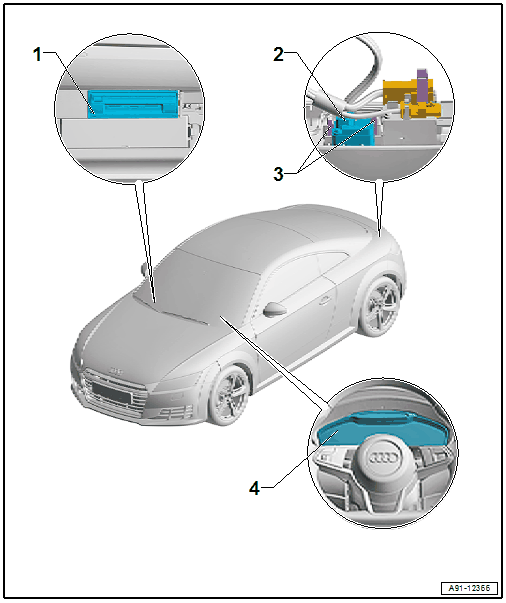

Component Location Overview - Rearview Camera System
WARNING: This page is about a different variant/trim than selected.
- Information Electronics Control Module 1 -J794-
- Connector assignment. Refer to the appropriate Wiring Diagram.
- Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Rearview Camera -R189-
- With Rearview Camera System Control Module -J772-
- Removing and installing. Refer to Rearview Camera -R189-, REMOVING AND INSTALLING .
- Retainers
- Instrument Cluster Control Module -J285-, Display
- Connector assignment. Refer to the appropriate Wiring Diagram.
- Removing and installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
