Overview - Infotainment System, MMI Radio Navigation Plus, I8F
WARNING: This page is about a different variant/trim than selected.
- Information Electronics Control Module 1 -J794- with integrated DVD player/SD memory card reader/navigation system in the glove compartment
- Multimedia System Control Head -E380- in the center console, UJ0
- Instrument Cluster Control Module -J285-, Display
- External Audio Source Connection -R199- (AUX IN jack) in the center console storage compartment, UE3
- Sound systems: basic plus/Standard, 8RM/9VD
- The Radio -R- is integrated in the Information Electronics Control Module 1 -J794-
Optional
- Digital Radio -R147- integrated in the Information Electronics Control Module 1 -J794-, only Europe/Rest of World and QV3
- Radio System, Satellite - R146- integrated in the Information Electronics Control Module 1 -J794-, only USA and QV8
- Digital Sound System Control Module -J525- under the left front seat, only 9VS
- Multimedia System Control Head -E380- -touch- in the center console, UJ1
- Premium Sound System, Bang & Olufsen, 9VS
- Audi phone box, 9ZE
- Audi phone box/connect, 9ZE/EL3
- Bluetooth Hands-Free Calling, 9ZX

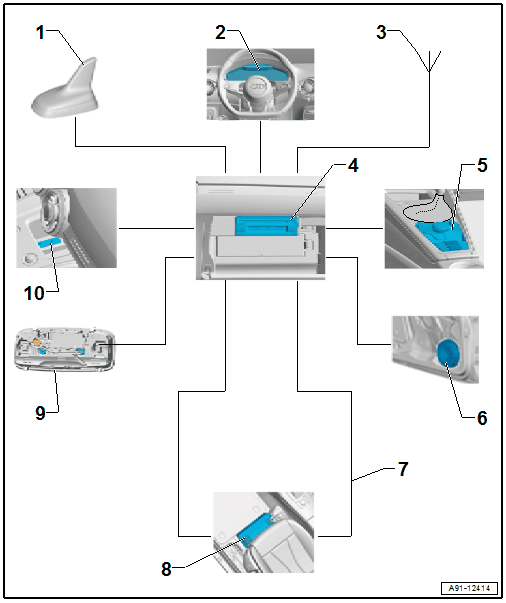

- Multifunction Steering Wheel
- Roof Antenna -R216-
- Instrument Cluster Control Module -J285-, Display
- Rear Window Antenna/Windshield Antenna
- Information Electronics Control Module 1 -J794- in the Glove Compartment
- Multimedia System Control Head -E380- in the Center Console
- Sound Systems
- MOST Bus
- Digital Sound System Control Module -J525- under the Left Front Seat, only 9VS
- Microphone Unit in Front Roof Module -R164- in the Front Interior Lamp -W1-
- External Audio Source Connection -R199- in the Center Console Storage Compartment
Fault finding is performed via the "Guided Fault Finding" on the Vehicle Diagnostic Tester.
Notes on MOST Bus
The optical Data Bus "MOST Bus" is used in addition to the CAN Bus.
A fiber-optic cable is used. Fiber-optic cables are routed inside corrugated tubes for protection.
Replace the complete fiber-optic cable if possible.
The front surface of the connectors must not be contaminated.
If disconnecting the connectors: Attach the Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9 .
When routing fiber-optic cables, make sure not to go below the minimum bending radius of 25 mm. Do not crush or kink fiber-optic cables.
Repairing fiber-optic cables. Refer to GENERAL REPAIR INFORMATION .
