Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Open the glove compartment.

-- Remove any CD/DVDs and SD/SIM cards in the Information Electronics Control Module 1 -J794-.

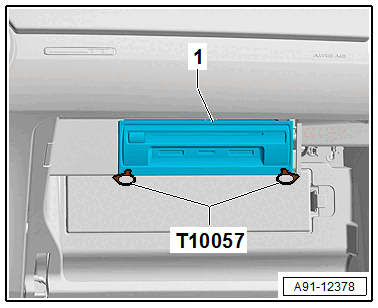

-- Insert the two clips from the Radio Removal Tool: T10057 into the slits in the Information Electronics Control Module 1 -J794- -1- until they lock into place. Points on grip eyes face outward.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Information Electronics Control Module 1 -J794- -1- from the glove compartment at the Radio Removal Tool: T10057 grip eyes.

-- Release and disconnect the connectors from the Information Electronics Control Module 1 -J794- -1-.

-- Insert the Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9 -1- onto the MOST Bus connector -2-.

Fig 1: Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of AUDI OF AMERICA, LLC

-- Press the release tabs on the Information Electronics Control Module 1 -J794- and remove the Radio Removal Tool: T10057 .
