Overview - Connection For External Multimedia Devices

WARNING: This page is about a different variant/trim than selected.

There are several External Audio Source Connection -R199- versions:

>>USB charge<< and >>USB connection<< are in the USB Connection Baseplate -R193-.

ASI - Audi Smartphone Integration

From MY 2017, the USB Connection Baseplate -R193- is labeled as the USB Distributor -R293-.

The External Audio Source Connection -R199- is part of the Information Electronics Control Module 1 -J794-.

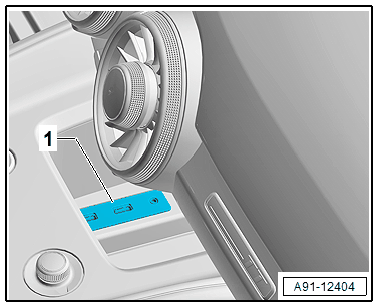

AMI Component Location - USB Connection Baseplate R193, USB (Quantity: 2), AUX IN, ASI, UI2/UE7, through MY 2016

Fig 1: AMI Component Location - USB Connection Baseplate -R193-, USB (Quantity: 2), AUX IN, ASI, UI2/UE7, through MY 2016

Courtesy of AUDI OF AMERICA, LLC

AMI Component Location - USB Distributor R293 / USB Connection 1 U41 / USB Connection 2 U42, AUX IN, ASI, UI2/UE7, from MY 2017

Fig 2: AMI Component Location - USB Distributor -R293- /USB Connection 1 -U41- /USB Connection 2 -U42-, AUX IN, ASI, UI2/UE7, from MY 2017

Courtesy of AUDI OF AMERICA, LLC

The connections -1- are located in the center console storage compartment.

The USB ports are fully connected. Various devices can be connected.

Suitable adapter cables are needed. Refer to the Owner's Manual.

Fault finding is performed via the "Guided Fault Finding" on the Vehicle Diagnostic Tester.
