External Audio Source Connection -R199-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the center console storage compartment. Refer to OVERVIEW - CENTER CONSOLE .
-- Release and disconnect the connectors from the External Audio Source Connection -R199-.

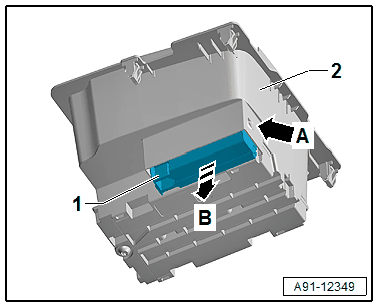

-- Press the tab -arrow A- on the External Audio Source Connection -R199- -1- and remove the External Audio Source Connection -R199- -1- from the storage compartment -2- in the direction of the -arrow B-.
