Traffic Data Antenna, Removing And Installing: Removing

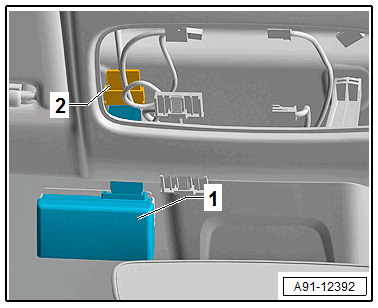

The connectors -2- for the Traffic Data Antenna -R173- -1- are located on the roof crossmember, behind the left sun visor. The flat band cable -2- is routed on the roof crossmember.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

Traffic Data Antenna -R173- removal:

A safety piece -2- secures the Traffic Data Antenna -R173- -1- to its bracket -3-. The bracket is glued to the windshield -3-.

Fig 1: Identifying Safety Piece

Courtesy of AUDI OF AMERICA, LLC

-- Remove the safety piece -2- with a small screwdriver.

Fig 2: Identifying Safety Piece

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Traffic Data Antenna -R173- -1- from the retainer -3-.
