Overview - Antenna Systems, Roadster
WARNING: This page is about a different variant/trim than selected.
Radio and TV Antennas
Antennas AM1/FM1/FM2/TV2 are film antennas in the left and right convertible top flap.
The antennas DAB/TV1/TV3 are in the left and right windshield antennas.
The antenna AM2 is in cord in the convertible top.
- Antenna -R11- (AM/FM1) to the Antenna Amplifier -R24- on the right B-pillar
- Radio Antenna 2 -R93- (FM2)/TV Antenna 2 -R56- (TV2) to the Antenna Amplifier 4 -R113- at the left B-pillar.
- Radio Antenna -R248- (AM2) to the Antenna Amplifier 3 -R112- on the right convertible top mechanism, near the right B-pillar.
- TV Antenna 1 -R55- (TV1) to the Antenna Amplifier 2 -R111- on the right side of the upper A-pillar
- TV Antenna 3 -R57- (TV3) to the TV Antenna Amplifier 2 -R83- on the upper left of the A-pillar.
- Satellite Tuner Antenna -R172- on the rear lid, only for QV8
Bumper Antennas
- LTE Antenna 1 -R297- under the rear bumper cover on the right side, only for EL3
- LTE Antenna 2 -R306- under the rear bumper cover on the left side, only for EL3
Telephone and Navigation Antennas
- Telephone Antenna -R65- under the rear panel cover, only for EL0
- GPS Antenna -R50- under the front of the instrument panel, only on 7UG, 7UH
Repairing Antenna Wires. Refer to GENERAL REPAIR INFORMATION .

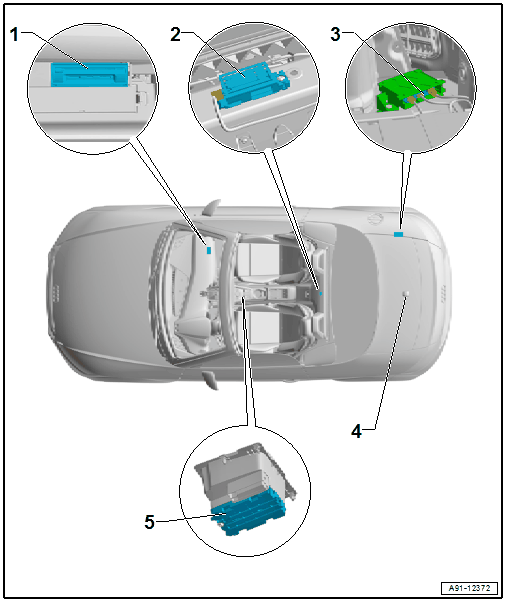

Overview - Antenna Systems without LTE, with Audi Phone Box 9ZE, without Audi Connect EL0
- Information Electronics Control Module 1 -J794-
- Telephone Antenna -R65-
- Cellular Telephone Amplifier -R86-
- Satellite Tuner Antenna -R172-
- Telephone Baseplate -R126-
- Audi phone box
Overview - Antenna Systems with LTE, with Audi Phone Box 9ZE, Audi Connect EL3
- Information Electronics Control Module 1 -J794-
- Cellular Telephone Amplifier -R86-
- LTE Antenna 1 -R297-
- Satellite Tuner Antenna -R172-
- LTE Antenna 2 -R306-
- Telephone Antenna -R65-
- Telephone Baseplate -R126-
- Audi phone box
