Overview - Antenna Systems, Coupe

WARNING: This page is about a different variant/trim than selected.

Radio and TV Antennas

The antennas are located in the rear window.

Antenna -R11- (AM/FM1)/TV Antenna 1 -R55- (TV1) to the Antenna Amplifier -R24- at the upper right of the rear lid.
TV Antenna 2 -R56- (TV2) to the TV Antenna Amplifier 1 -R82- on the lower right of the rear lid.
Radio Antenna 2 -R93- (FM2) to the Antenna Amplifier 2 -R111- at the top left side of the rear lid
TV Antenna 3 -R57- (TV3) to the TV Antenna Amplifier 2 -R83- on the lower left of the rear lid

Roof Antenna -R216-

Bumper Antennas

LTE Antenna 1 -R297- under the rear bumper cover on the right side, only for EL3
LTE Antenna 2 -R306- under the rear bumper cover on the left side, only for EL3

Repairing Antenna Wires. Refer to GENERAL REPAIR INFORMATION .

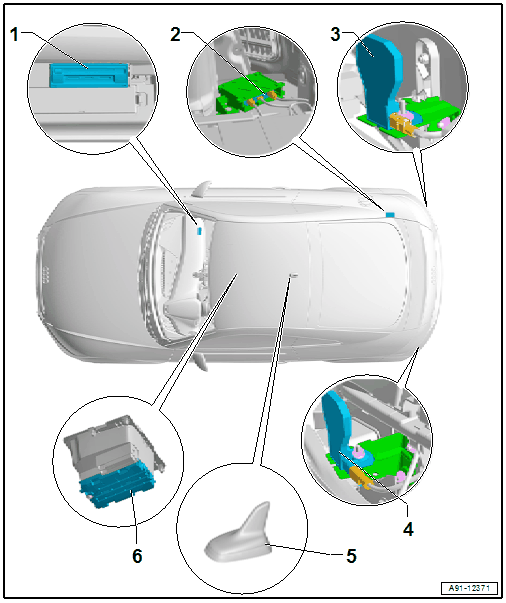

Overview - Antenna Systems with LTE, without Audi Phone Box 9ZX, Audi Connect EL3

Courtesy of AUDI OF AMERICA, LLC

Overview - Antenna Systems with LTE, with Audi Phone Box 9ZE, Audi Connect EL3

Courtesy of AUDI OF AMERICA, LLC

Information Electronics Control Module 1 -J794-
Cellular Telephone Amplifier -R86-
LTE Antenna 1 -R297-
LTE Antenna 2 -R306-
Roof Antenna -R216-
- Telephone Antenna -R65-
- GPS Antenna -R50-
- Satellite Tuner Antenna -R172-
Telephone Baseplate -R126-
- Audi phone box
