Film Antennas, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Open the convertible top.
-- Remove the rear panel cover. Refer to COMPONENT LOCATION OVERVIEW - VEHICLE INTERIOR TRIM PANELS .

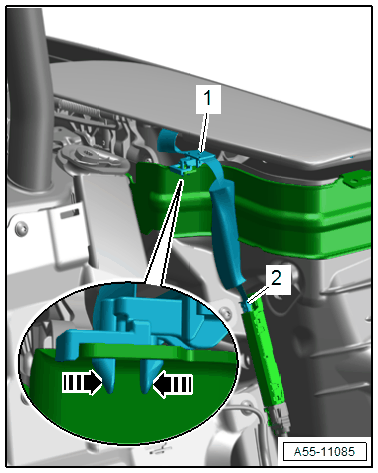

-- Disconnect the connector -2-.
-- Release the retainer in direction of -arrows-.
-- Free up the connection for the film antenna.
-- Remove the retaining plate for the convertible top frame flap. Refer to the appropriate Service Information .

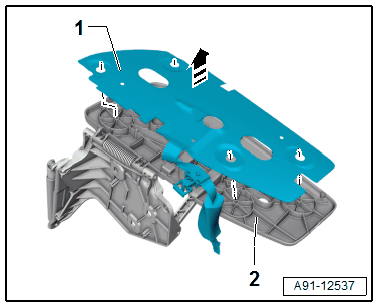

-- Remove the film antenna -1- from the convertible top frame flap -2- in the direction of -arrow-.
