Antenna Amplifier 3 -R112-, REMOVING AND INSTALLING, ROADSTER: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the right rear roof frame trim panel. Refer to the appropriate Service Information .

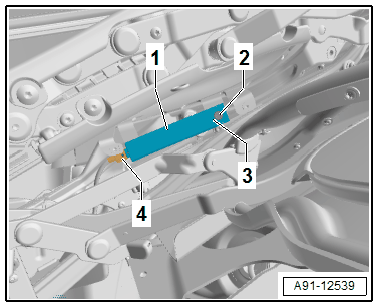

-- Release and disconnect the connectors -3 and 4- from the Antenna Amplifier 3 -R112- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Only loosen the bolt -2- (do not remove) and remove the Antenna Amplifier 3 -R112- -1-.
