Antenna Amplifier -R24-, REMOVING AND INSTALLING, COUPE: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove rear lid upper trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .

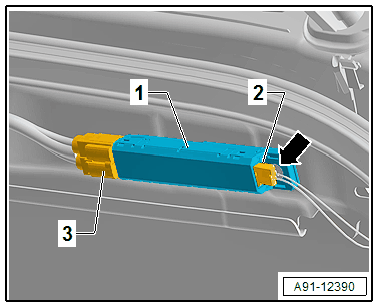

-- Release and disconnect the connectors -2 and 3- on the Antenna Amplifier -R24- -1-.
-- Only loosen the screw -arrow- (do not remove) and remove the Antenna Amplifier -R24- -1- from the rear lid.
