Secondary Air Injection Sensor 1 -G609-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
-- Free up the wiring harness and push it slightly to the side.

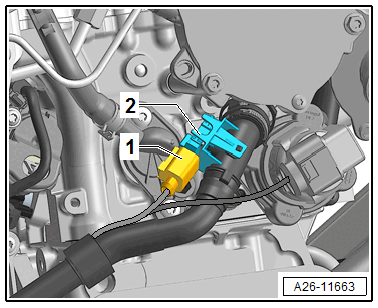

-- Disconnect the connector -1-.
-- Release the catches and secondary air injection sensor -2-.
