Secondary Air Injection Pump Motor -V101-, REMOVING AND INSTALLING, VERSION 2: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the left front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

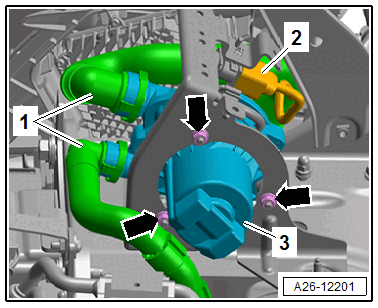

-- Remove the connector -2- from the bracket, disconnect it, and free up the wire.
-- Press the release buttons on both sides to remove the lines -1- from the Secondary Air Injection Pump Motor -V101-.
-- Remove the nuts -arrows- and the Secondary Air Injection Pump Motor -V101- -3-.
