Overview - Secondary Air System
WARNING: This page is about a different variant/trim than selected.

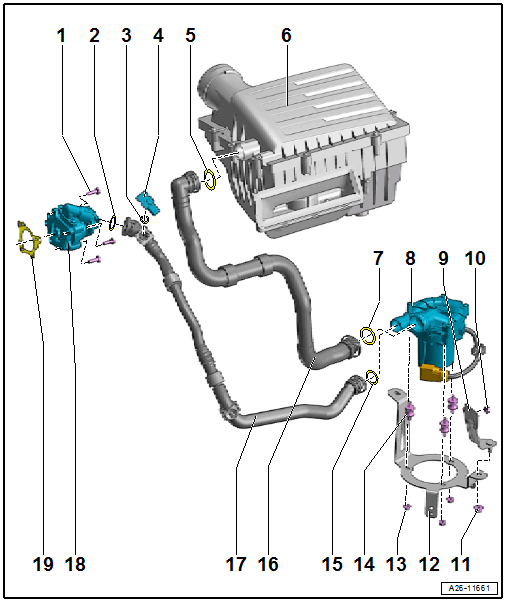

- Bolt
- 9 Nm
- O-Ring
- Check for damage
- Not available separately, delivered with -item 17-
- Coat with engine oil
- O-Ring
- Check for damage
- Not available separately, delivered with -item 4-
- Coat with engine oil
- Secondary Air Injection Sensor 1 -G609-
- Removing and installing. Refer to Secondary Air Injection Sensor 1 -G609-, REMOVING AND INSTALLING .
- O-Ring
- Check for damage
- Not available separately, delivered with -item 16-
- coat with engine oil
- Air Filter Housing
- Overview. Refer to OVERVIEW - AIR FILTER HOUSING .
- O-Ring
- Check for damage
- Not available separately, delivered with -item 16-
- Coat with engine oil
- Secondary Air Injection Pump Motor -V101-
- There are different versions.
- Removing and Installing. Refer to Secondary Air Injection Pump Motor -V101-, REMOVING AND INSTALLING .
- Bracket
- On body
- There are different versions.
- Nut
- 8 Nm
- Nut
- 8 Nm
- Bracket
- For the Secondary Air Injection Pump Motor -V101-
- There are different versions.
- Nut
- 8 Nm
- Rubber Bushing
- O-Ring
- Check for damage
- Not available separately, delivered with -item 17-
- Coat with engine oil
- Suction Line
- From the air filter housing to the Secondary Air Injection Pump Motor -V101-
- There are different versions.
- Pressure Line
- From the Secondary Air Injection Solenoid Valve -N112- to the Secondary Air Injection Pump Motor -V101-
- There are different versions.
- Secondary Air Injection Solenoid Valve -N112-
- Do not disconnect from the flange.
- Replace completely with the flange.
- Removing and installing. Refer to Secondary Air Injection Solenoid Valve -N112-, REMOVING AND INSTALLING .
- Seal
- Always replace after removing
