Camshaft, Removing And Installing, Engine With Guide Rail Version 2: Installing

WARNING: This page is about a different variant/trim than selected.

The crankshaft must not be at "TDC".
Replace the bolts that were tightened with an additional turn after removing them.

-- Make sure all the roller rocker levers lie correctly on the ends of the valve stems and are clipped onto the respective hydraulic lifters.

-- If the crankshaft was turned in the meantime: bring the piston for cylinder 1 to TDC and then turn the crankshaft back again slightly.

CAUTION:

Risk of Injuring the Eyes from Sealant Residue.

- Wear protective eyewear.

-- To prevent contamination of the lubricating system with sealant residue, place a clean cloth over the open engine components.

-- Remove any sealant residue on the cylinder head using the flat-blade scraper.

-- Remove any sealant residue from the groove on the cylinder head cover as well as on the sealing surfaces.

-- Clean the sealing surfaces. They must be free of oil and grease.

The adjusting element pins must not be in the outward position.

Fig 1: Bring the Cam Adjustment Actuators into the Installed Position
Courtesy of AUDI OF AMERICA, LLC

-- Press down the cam adjustment actuator pins in direction of -arrow- by hand.

-- Lubricate the running surfaces of both camshafts.

-- If the camshafts are replaced, the markings -arrow- need to be transferred onto the new camshafts.

Fig 2: Mark Camshaft Sprocket

Courtesy of AUDI OF AMERICA, LLC

-- Place the intake camshaft -A- in the cylinder head. Turn the cam lobes of cylinder 4 -arrows- upward.

Fig 3: Identifying Intake Camshaft And Cylinder Head

Courtesy of AUDI OF AMERICA, LLC

Fig 4: Placing Exhaust Camshaft In Cylinder Head Cover

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of Injuring the Eyes Due to the Sliding Bar Ball Springing Out.

- Wear protective eyewear.

-- Place the exhaust camshaft in the cylinder head cover as shown. The cam pair -A and B- must be pushed together.

-- Turn the exhaust camshaft until the markings -A and B- align.

Fig 5: Locating Alignment Marks

Courtesy of AUDI OF AMERICA, LLC

-- Apply the sealant on the clean sealing surface of the cylinder head cover as shown -arrows-.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of engine damage due to excess sealant in the lubrication system.

- Do not apply sealant bead thicker than indicated.

Sealant bead thickness: 1.5 to 2.5 mm

-- Secure the camshaft and place the cylinder head cover with the camshaft on the cylinder head.

-- Lightly push on the cylinder head cover by hand and while doing so turn the camshaft slightly until the cylinder head cover lays >>free of tension<< on the cylinder head.

Fig 6: Turning Camshafts

Courtesy of AUDI OF AMERICA, LLC

-- Replace the cylinder head cover bolts.

-- Tighten the bolts in several steps. Refer to Figure for the tightening sequence.

NOTE:

Make sure the cylinder head cover is not tilted.

-- Turn the intake camshaft in direction of -arrow 1- until the marking -3- aligns with the : T40271/2 .

Fig 7: Identifying Markings And Camshaft Clamp T40271/2

Courtesy of AUDI OF AMERICA, LLC

-- Slide the : T40271/2 into the chain sprocket splines in direction of -arrow 2-.

-- Turn the exhaust camshaft in direction of -arrow 1- until the marking -3- aligns with the : T40271/1 .

Fig 8: Identifying Markings And Camshaft Locating Tool T40271/1

Courtesy of AUDI OF AMERICA, LLC

-- Slide the : T40271/1 into the chain sprocket splines in direction of -arrow 2-.

-- Turn the vibration damper in the "TDC" position.

Fig 9: Cylinder Head Exploded View

Courtesy of AUDI OF AMERICA, LLC

The notch on the vibration damper and the marking on the lower cover for timing chain must be opposite one another -arrow-.

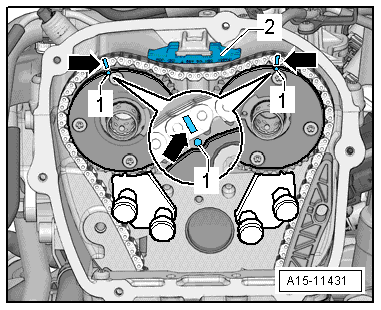

-- Position the markings on the chain links -arrows- at the chain sprockets -1- to mount the camshaft timing chain.

Fig 10: Identifying Markings On Chain Links

Courtesy of AUDI OF AMERICA, LLC

-- Install the upper guide rail -2-.

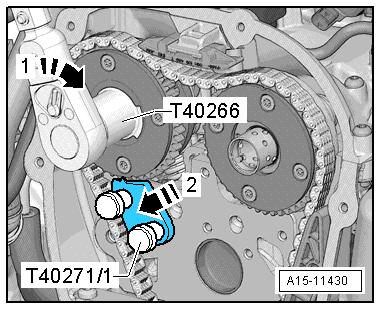

-- Use the : T40266 to turn the exhaust camshaft in direction of -arrow 1-, slide out the : T40271/1 from the chain sprocket splines in direction of -arrow 2- and release the camshaft.

Fig 11: Identifying Assembly Tool T40266

Courtesy of AUDI OF AMERICA, LLC

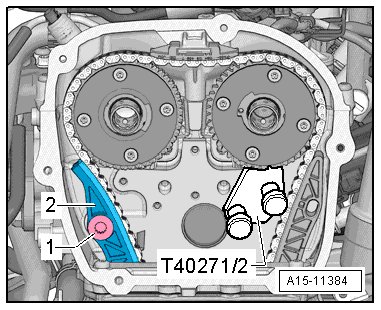

-- Guide the tensioning rail -2- upward and install the bolt -1-.

Fig 12: Identifying Tensioning Rail Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Use the : T40266 to turn the intake camshaft in direction of -arrow 1-, slide out the : T40271/2 from the chain sprocket splines in direction of -arrow 2- and release the camshaft.

Fig 13: Identifying Assembly Tool T40266 And Camshaft Clamp T40271/2

Courtesy of AUDI OF AMERICA, LLC

Checking Valve Timing - with Marks on the Cylinder Head Cover

Fig 14: Identifying Vibration Damper With Counterhold - Vibration Damper T10355

Courtesy of AUDI OF AMERICA, LLC

-- Turn the vibration damper in the "TDC" position.

The notch on the vibration damper must align with the arrow marking on the lower timing chain cover -arrow-.
The markings -1- on the camshaft chain sprockets must be opposite the markings -2 and 3- on the cylinder head.

Checking Valve Timing - without Marks on the Cylinder Head Cover

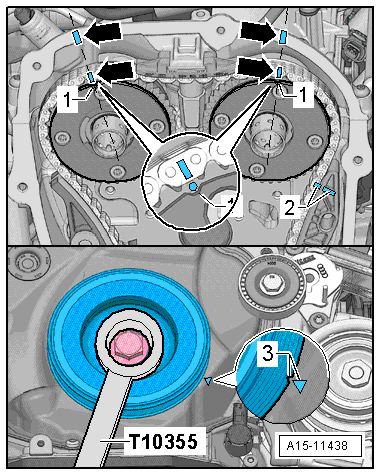

Fig 15: Identifying Markings On Chain Sprocket

Courtesy of AUDI OF AMERICA, LLC

-- The camshaft timing chain and cylinder head -arrows- must align with the markings on the chain sprocket -1-.

-- The markings for the camshaft timing chain and the camshaft timing chain guide rail -2- must align.

-- The notch on the vibration damper must align with the marking on the lower timing chain cover -3-.

NOTE:

If the self-made markings are no longer visible, check the valve timing. Refer to VALVE TIMING, CHECKING .

Continued for All Engines:

Fig 16: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Install the bolts -arrows- and tighten them. Tightening specification -item ) Bolt.

-- Lubricate the holes -arrows- with engine oil.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The adapter sleeve -1- is not present on every bearing bracket.

Carefully connect the bearing bracket without tilting - risk of damage.

Fig 17: Identifying Bolts
Courtesy of AUDI OF AMERICA, LLC

-- Mount the bearing bracket and the bolts -arrows- hand-tight.

-- Remove the : T40267 .

Fig 18: Securing Chain Tensioner With T40267

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bearing bracket bolts. Refer to Figure.

-- Install the control valves -item ) Control Valves.

-- Install the vacuum pump. Refer to VACUUM PUMP, REMOVING AND INSTALLING .

-- Install the high pressure pump. Refer to HIGH PRESSURE PUMP, REMOVING AND INSTALLING .

-- Install the upper timing chain cover. Refer to TIMING CHAIN COVER, REMOVING AND INSTALLING, ENGINE WITH TWO CAMSHAFT ADJUSTERS .

There are additional procedures depending on the model. Refer to CAMSHAFT, REMOVING AND INSTALLING .

After Removing or Replacing the Camshafts the Adaptation Values for the Chain Length must be Adapted Again.

-- Connect the Vehicle Diagnostic Tester.

-- Select Diagnostic operating mode and Start diagnostics .

-- Select the Select individual test tab and select the following tree structure consecutively:

Drivetrain
Select the engine code and engine
01 - OBD-capable systems .
01 - Engine Electronics
01 - Engine electronics, functions
01 - Chain length diagnostic adaptation
