Special Tools

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Special Tools

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

Spark Plug Removal Tool: 3122B
Compression Tester Kit: VAG1763
Compression Tester Kit - Adapter 5A: VAG1381/5A
Compression Tester Kit - Adapter: VAG1381/1
Vehicle Diagnostic Tester

Special tools and workshop equipment required

Polydrive Bit Drive Socket: T10070

Fig 2: Identifying Polydrive Bit Drive Socket T10070
Courtesy of AUDI OF AMERICA, LLC
Dial Gauge Adapter: T10170A

Fig 3: Dial Gauge Adapter T10170A
Courtesy of AUDI OF AMERICA, LLC
Counterhold - Multiple Use: T10172A

Fig 4: Counterhold - Kit - Multiple Use T10172
Courtesy of AUDI OF AMERICA, LLC
Assembly Tool : T10352B

Courtesy of AUDI OF AMERICA, LLC
Central Valve Assembly Tool: T10352/1
Assembly Tool: T10352/2
Assembly Tool: T10352/3
Assembly Tool : T10352/4
Seal Installer - Crankshaft: T10354

Fig 5: Crankshaft Seal Installer T10354
Courtesy of AUDI OF AMERICA, LLC
Counterhold - Vibration Damper: T10355

Fig 6: Counterhold - Vibration Damper T10355
Courtesy of AUDI OF AMERICA, LLC
Press Piece - Gearbox: T10375

Fig 7: Identifying Press Piece - Gearbox T10375
Courtesy of AUDI OF AMERICA, LLC
Vibration Damper Assembly Tool: T10531

Fig 8: Assembly Tool Set T10531
Courtesy of AUDI OF AMERICA, LLC
Vibration Damper Assembly Tool - Turning Over Tool: T10531/3
Vibration Damper Assembly Tool - Knurled Nut: T10531/4
Locking Pin (3 pc.): T40011

Fig 9: Identifying Locking Pin T40011
Courtesy of AUDI OF AMERICA, LLC
Valve Cotter Tool Kit - Adapter: T40012

Fig 10: Valve Cotter Tool Kit - Adapter
Courtesy of AUDI OF AMERICA, LLC
Camshaft Spacer: T40191

Fig 11: Camshaft Spacer T40191
Courtesy of AUDI OF AMERICA, LLC
Chain Tensioner Lever: T40243

Courtesy of AUDI OF AMERICA, LLC
Wrench - 21mm: T40263

Fig 12: Identifying Wrench - 21mm
Courtesy of AUDI OF AMERICA, LLC
Adapter: T40266

Fig 13: Adaptor
Courtesy of AUDI OF AMERICA, LLC
Tensioner Locking Tool: T40267

Courtesy of AUDI OF AMERICA, LLC
Socket - Xzn 12: T40270

Courtesy of AUDI OF AMERICA, LLC
Camshaft Locks: T40271

Courtesy of AUDI OF AMERICA, LLC
Camshaft Lock - Component 1: T40271/1
Camshaft Lock: T40271/2
Seal Installer - Crankshaft: T40274

Fig 14: Identifying Counterhold Tool T10531/1
Courtesy of AUDI OF AMERICA, LLC
Adapter: T40314

Fig 15: Adapter T40314
Courtesy of AUDI OF AMERICA, LLC
Seal Installer - Valve Stem: T40376/1
Valve Keeper Tool Kit: VAS5161A

Fig 16: Valve Keeper Tool Kit VAS5161A
Courtesy of AUDI OF AMERICA, LLC
Valve Keeper Tool Kit Pressure Fork with Lever for Assembly Cartridge: VAS5161/2
Valve Cotter Tool Kit - Punch: VAS5161/3A
Guide Forks M6/M8 with Threaded Studs: VAS5161/5
Retainer: VAS5161/6
Valve Cotter Tool Kit - Assembly Cartridge: VAS5161/8A
Knurled Thumb Screws M6: VAS5161A/12
Valve Cotter Tool Kit - Valve Insertion Device: VAS5161/18
Valve Cotter Tool Kit - Guide Plate 19c: VAS5161/19C
Vehicle Diagnostic Tester - Test Adapter - 3 Pin: VAS5570

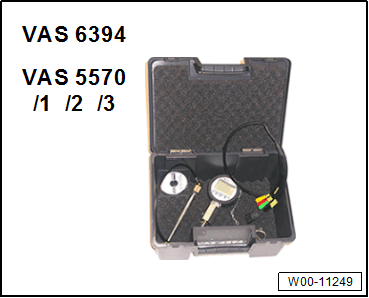

Fig 17: Identifying Vehicle Diagnostic Tester VAS 6394 & Test Adapter VAS 5570
Courtesy of AUDI OF AMERICA, LLC
Engine and Transmission Holder: VAS6095A

Fig 18: Identifying Engine and Gearbox Bracket VAS6095A
Courtesy of AUDI OF AMERICA, LLC
Dial Gauge - 0-10mm: VAS6079

Fig 19: Dial Gauge
Courtesy of AUDI OF AMERICA, LLC
Engine Bung Set: VAS6122

Fig 20: Engine Bung Set
Courtesy of AUDI OF AMERICA, LLC
Dial Gauge Set: VAS6341

Fig 21: Identifying Dial Gauge Set VAS 6341
Courtesy of AUDI OF AMERICA, LLC
Cylinder Head Tensioning Device: VAS6419

Courtesy of AUDI OF AMERICA, LLC
Dial Gauge Holder: VW387

Fig 22: Dial Gauge Holder
Courtesy of AUDI OF AMERICA, LLC
Puller - Valve Seal: 3364

Fig 23: Identifying Puller - Valve 3364
Courtesy of AUDI OF AMERICA, LLC
Seal Installer - Valve Stem: 3365 .

Fig 24: Identifying Seal Installer - Valve Stem 3365
Courtesy of AUDI OF AMERICA, LLC
