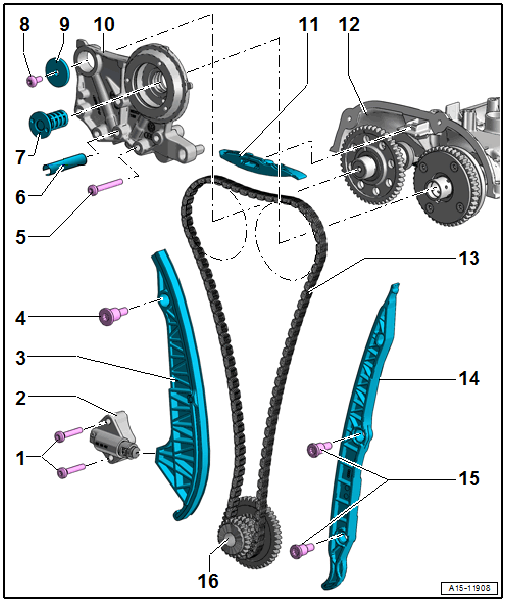

Overview - Camshaft Timing Chain, Engine With One Camshaft Adjuster
WARNING: This page is about a different variant/trim than selected.
- After removing or replacing the chain drive components the adaptation values for the chain length must be adapted again. Use the Vehicle Diagnostic Tester 01 - Engine electronics, functions , 01 - Chain length diagnostic adaptation .
- Bolt
- For aluminum bolts: 4 Nm +90°
- For steel bolts: 9 Nm
- Replace after removing.
- Chain Tensioner
- Is under tension
- Secure using the Locking Tool: T40267 before removing
- Timing Chain Tensioning Rail
- Guide Pin
- 20 Nm
- Bolt
- Tightening Specifications and Sequence. Refer to Fig 2.
- Aluminum bolt: Always replace after removal
- Adapter Sleeve
- Depending on the version, not present on every bearing bracket
- Control Valve
- 35 Nm
- Left-hand thread
- Different versions depending on the version.
- Checking. Refer to Figure.
- Bolt
- Tightening Specifications and Sequence. Refer to Fig 2.
- Always replace after removing
- Washer
- Bearing Bracket
- Assembly instructions. Refer to Figure.
- Removing and Installing. Refer to BEARING BRACKET, REMOVING AND INSTALLING, ENGINE WITH ONE CAMSHAFT ADJUSTER .
- Camshaft Timing Chain Guide Rail
- Camshaft Housing
- Camshaft Timing Chain
- Before removing, mark the running direction with paint
- Removing and Installing. Refer to CAMSHAFT TIMING CHAIN, REMOVING AND INSTALLING, ENGINE WITH ONE CAMSHAFT ADJUSTER .
- Camshaft Timing Chain Guide Rail
- Guide Pin
- 20 Nm
- Three Stage Chain Sprocket
- Crankshaft
- Installation position. Refer to Figure.
Bearing Bracket - Tightening Specifications and Sequence
-- Tighten the bolts in the steps shown in the sequence:
For Steel Bolts
- Replace the bolts that were tightened with an additional turn after removing them.
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 to 7- | Install by hand all the way |
| 2. | -1 to 6- | 9 Nm |
| 3. | -7- | Pretighten to 8 Nm |
| 4. | -7- | 90° additional turn |
For Aluminum Bolts
- Replace the bolts that were tightened with an additional turn after removing them.
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 to 7- | Install by hand all the way |
| 2. | -1 to 6- | Pre-tighten to 4 Nm |
| 3. | -1 to 6- | 180° additional turn |
| 4. | -7- | Pretighten to 8 Nm |
| 5. | -7- | 90° additional turn |
