Camshaft Timing Chain, Removing And Installing, Engine With One Camshaft Adjuster: Removing

-- Remove the noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Remove the upper timing chain cover. Refer to TIMING CHAIN COVER, REMOVING AND INSTALLING, ENGINE WITH ONE CAMSHAFT ADJUSTER .

• Pay attention to the direction of rotation: the control valve has left-hand threads - there is a risk of damaging the threads.

  Courtesy of AUDI OF AMERICA, LLC

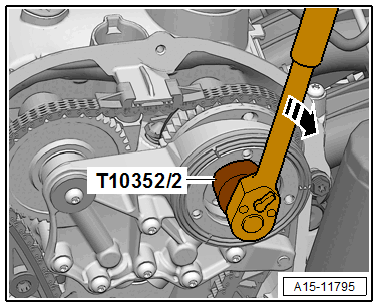

-- Remove the control valve in direction of -arrow-.

Depending on the version of the control valve use one of the tools listed:

• Central Valve Assembly Tool: T10352B
• : T10352/1A
• : T10352/2
• : T10352/3
• : T10352/4

-- To do so, use the : T40263  , : T40314  and 24mm socket to counterhold the crankshaft at the vibration damper.

-- Remove the bolts -arrows-.

• Carefully remove the bearing mount, without tilting.

-- Remove the bearing mount.

-- Turn the vibration damper in "TDC".

• The notch on the vibration damper and the marking on the lower timing chain cover -arrow- must be align.
• The markings -1- on the camshaft chain sprockets must be opposite the markings -2 and 3-.

TIP:

The combination of the Wrench - 21mm: T40263  , Adapter: T40314  and 24 mm socket are better suited than the Counterhold - Vibration Damper: T10355  for positioning the vibration damper.

-- Remove the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REPLACING .

-- Check the "TDC point" again.

-- Press the oil pump chain tensioner bracket in direction of -arrow- and lock with : T40011  .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and remove the chain tensioner -2-.

-- Remove the bolts -arrows-.

-- Install the : T40243  on the cylinder head -arrows lower-.

-- Press the chain tensioner circlip -1- together and hold it.

-- Slowly press and hold the : T40243  in direction of -arrow-.

• This will push back the chain tensioner.

TIP:

The chain tensioner is lubricated with oil and can only be pushed back slowly by applying constant pressure.

-- Secure the chain tensioner with the : T40267  .

-- Remove the : T40243  .

-- Bolt the : T40271/2  to the cylinder head and slide into the splines on the chain sprocket in direction of -arrow 2-. Rotate the intake camshaft with the : T40266  in direction of -arrow 1- if necessary.

-- Install the : T40271/1  on the cylinder head.

• The help of a second technician is necessary for the following step.

-- Hold the exhaust camshaft securely with the : T10172A  in direction of the arrow -A-. Remove the bolt -1- and guide the tensioning rail -2- downward.

-- Turn the exhaust camshaft clockwise in direction of -arrow A- until the : T40271/1  can be pushed into the chain sprocket splines -C- in direction of -arrow B-.

-- Remove the guide rail -1- by unlocking the latch -arrow- with a screwdriver and pushing the guide rail forward.

-- Remove the bolts -arrows- and remove the chain tensioner -1-.

-- Remove the bolts -1- and remove the guide rail -2-.

-- Remove the camshaft timing chain from the camshaft sprockets and hang it on the camshaft pins -arrows-.

-- Remove the balance shaft assembly chain tensioner -1-.

-- Remove the bolts -1- and remove the tensioning rail -2- and guide rails -3 and 4-.

-- Loosen the adjusting bolt -A- and remove the tensioning pin -B-.

-- Remove the oil pump drive timing chain to remove the three stage chain sprocket.

-- Remove the camshaft timing chain and drive chain for the balance shaft.
