Bearing Bracket, Removing And Installing, Engine With One Camshaft Adjuster: Installing

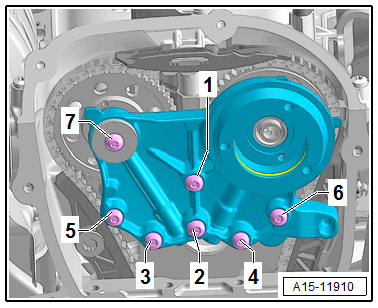

Fig 1: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Install the bolts -arrows- and tighten them. Tightening specification -item  ) Bolt.

-- Lubricate the hole -arrow- with engine oil.

Courtesy of AUDI OF AMERICA, LLC

• If a new bearing bracket -3- with adapter sleeve -4- should be installed, it must be checked before installing the bearing bracket in the hole -arrow- in the cylinder head -1-.
  Fig 2: Bearing Bracket - Assembly Instructions

  Courtesy of AUDI OF AMERICA, LLC
• If the hole -arrow- is not designed for using the adapter sleeve -4- the adapter sleeve must be removed from the bearing bracket. For this hole the short bolt -2- should be used. Bolt. Refer to the Parts Information.

• Carefully connect the bearing bracket without tilting - risk of damage.
  Fig 3: Bearing Bracket Bolts

  Courtesy of AUDI OF AMERICA, LLC

-- Mount the bearing bracket and the bolts -arrows- hand-tight.

-- Remove the : T40267  .

-- Tighten the bolts -arrows-. Refer to Figure.

Installation is performed in reverse order of removal, noting the following:

-- Install the upper timing chain cover. Refer to TIMING CHAIN COVER, REMOVING AND INSTALLING, ENGINE WITH ONE CAMSHAFT ADJUSTER .

After Removing or Replacing the Chain Drive Components the Adaptation Values for the Chain Length must be Adapted Again.

-- Connect the Vehicle Diagnostic Tester.

-- Select Diagnostic  operating mode and Start diagnostics  .

-- Select the Select individual test  tab and select the following tree structure consecutively:

• Drivetrain
• Select the engine code and engine
• 01 - OBD-capable systems  .
• 01 - Engine Electronics
• 01 - Engine electronics, functions
• 01 - Chain length diagnostic adaptation
