Engine, Securing To Engine And Transmission Holder

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Procedure

Transmission separated from engine. Refer to ENGINE AND TRANSMISSION, SEPARATING .

-- If equipped, release the retainer in direction of -arrow- and remove the engine cover mount -1-.

Fig 1: Identifying Engine Cover Mount

Courtesy of AUDI OF AMERICA, LLC

-- Engage the :2024A onto the engine and onto the :VAS6100 .

Fig 2: Engine Lifted

Courtesy of AUDI OF AMERICA, LLC

To be aligned to the center of gravity of the assemblies, the mounting hook rail with holes must be inserted as shown.

CAUTION:

There Is a Risk of Injury from the Lifted Engine Falling.

Parts of the Body Could Be Crushed.

- Secure the mounting hooks and pins on the lifting tackle with a securing pin.

-- Insert the securing pins -arrows- to secure the mounting hooks and alignment pins.

-- Fasten the engine to the :VAS6095/1 using the :VAS6095A .

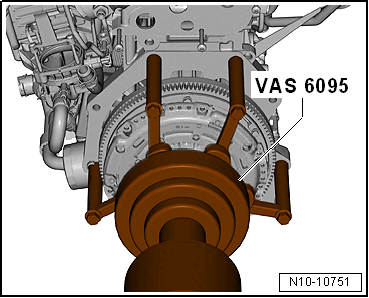

Fig 3: Identifying Engine And Transmission Holder

Courtesy of AUDI OF AMERICA, LLC

Tightening Specification
