Transmission Mount, Removing And Installing: Removing

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

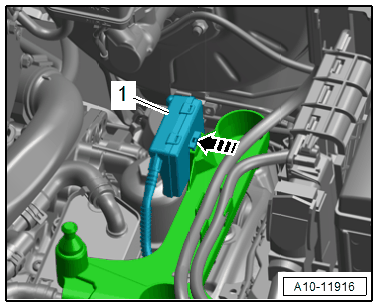

-- Variation: release the catch in direction of -arrow- and push the bleeder -1- upward.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wires -2- on the air filter housing bracket -1- using the :80-200  .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the bracket.

-- Remove the Engine Control Module -J623- from the bracket. Refer to Engine Control Module -J623-, REMOVING AND INSTALLING .

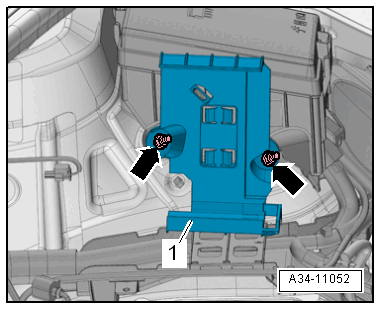

-- Remove the bolts -arrows- and remove the bracket -1-.

Courtesy of AUDI OF AMERICA, LLC

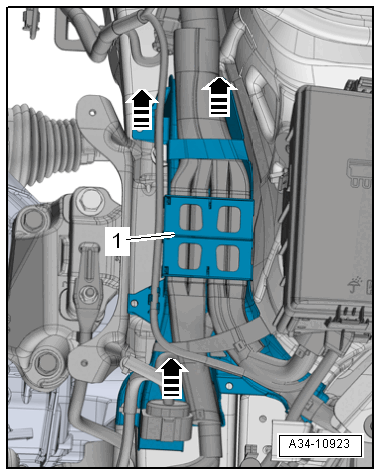

-- Unclip the wiring guide -1- upward in direction of -arrows- and move it slightly to the side.

Fig 1: Identifying Wiring Guide

Courtesy of AUDI OF AMERICA, LLC

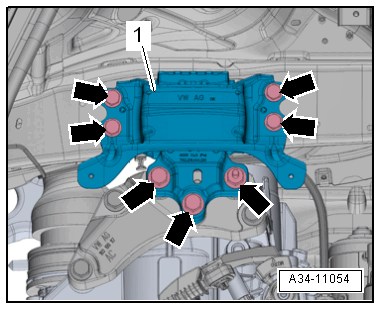

-- Remove the bolts -arrows- and the transmission mount -1-.

Fig 2: Identifying Bolts And Transmission Mount

Courtesy of AUDI OF AMERICA, LLC
