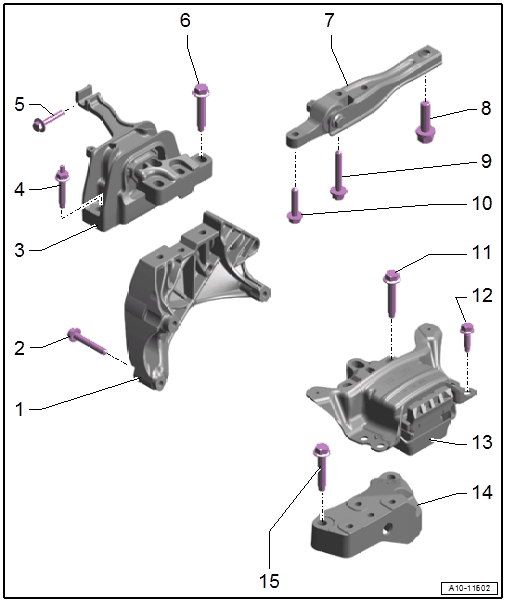

Overview - SUBFRAME Mount
WARNING: This page is about a different variant/trim than selected.
- Engine Support
- Removing and Installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
- Bolt
- Tightening specification and sequence. Refer to Fig 2.
- Replace after removing.
- Engine Mount
- With support arm
- Removing and Installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
- Bolt
- 40 Nm +90°
- Replace after removing.
- Bolt
- 20 Nm +90°
- Replace after removing.
- Bolt
- 60 Nm +90°
- Replace after removing.
- Pendulum Support
- There are different versions. Refer to the Parts Information for the allocation.
- Removing and Installing. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
- Bolt
- Tightening specification and sequence. Refer to Fig 3.
- Replace after removing.
- Bolt
- Tightening specification and sequence. Refer to Fig 3.
- Replace after removing.
- Bolt
- Tightening specification and sequence. Refer to Fig 3.
- Replace after removing.
- Bolt
- Tightening specification. Refer to the appropriate service information .
- Bolt
- Tightening specification. Refer to the appropriate service information .
- Transmission Mount
- With support arm
- Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
- Transmission Support
- There are different versions. Refer to the Parts Information for the allocation.
- Bolt
- Tightening specification. Refer to the appropriate service information .
Engine Support - Tightening Specification and Sequence
NOTE:
Replace the bolts that were tightened with an additional turn after removing them.
-- Tighten the bolts in the steps shown in the sequence:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 to 3- | 7 Nm |
| 2. | -1 to 3- | 40 Nm |
| 3. | -1 to 3- | 90° additional turn |
Installing the Pendulum Support
NOTE:
Replace the bolts that were tightened with an additional turn after removing them.
-- Tighten the bolts in the steps shown in the sequence:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -2 and 3- | 50 Nm |
| 2. | -1- | 130 Nm |
| 3. | -1 to 3- | 90° additional turn |
