Engine, Supporting In Installation Position
Special tools and workshop equipment required
- Engine Support Bridge:10-222 A
- Engine Support Bridge - Sub-Frame Adapter:10-222A/22
- Engine Support - Basic Set:T40091
- Engine Support - Supplement Kit:T40093A
Procedure

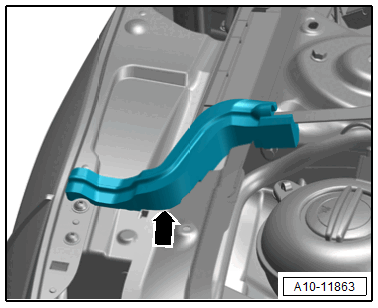

-- Remove the left and right foam wedge -arrow- upward.
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

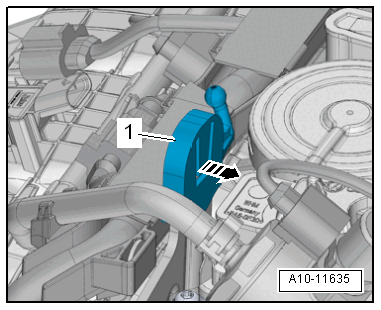

-- If equipped, release the retainer in direction of -arrow- and remove the engine cover mount -1-.
-- Remove the seal from the plenum chamber bulkhead.

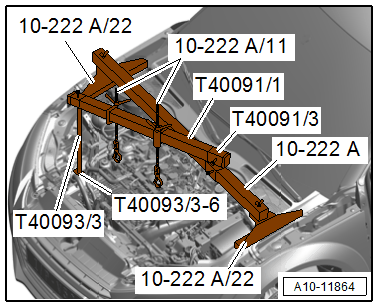

-- Position the :10-222A on the right and left fender bolting edge and on the right longitudinal member as shown, to do so slightly lift the front plenum chamber cover.
-- Attach the :10-222A/11 to the left and right engine lifting eyes.
-- Slightly pretension the engine/transmission assembly with the spindle, do not lift.
Assembling
Assemble in the reverse order of removal. Note the following:
-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
