Engine And Transmission, Separating, Vehicles With Dual-Clutch Transmission 0D9

Special tools and workshop equipment required

• Engine Support Bridge - Special Hook (2 pc.):10-222A/20
• Engine Sling - Engine Bracket :2024 A /1  for the Engine Sling:2024 A
• Shop Crane:VAS6100
• Engine Bung Set:VAS6122

Procedure

Courtesy of AUDI OF AMERICA, LLC

• Engine/transmission assembly removed and mounted on :T10359A  .

-- Remove the starter. Refer to STARTER, REMOVING AND INSTALLING .

-- Remove the nut -arrows- and remove the front bracket from the transmission fluid pan.

-- Remove the bolts -1 and 2- and remove the bevel box bracket.

-- Variation: free up the secondary air injection hose -3- or the coolant hose.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness -1 and 2- from the air duct pipe.

-- Loosen the screw-type clamp -4-.

-- Remove the bolts -arrows- and remove the air duct pipe.

Version with Secondary Air System:

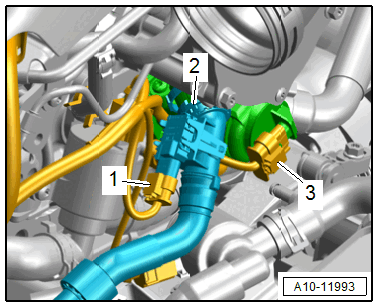

-- Disconnect the connector -1-.

-- Press the release buttons on both sides and remove the secondary air injection hose -2-.

Versions with Transmission Coolant Valve -N488- Version 1:

-- Disconnect the connector -2-.

Continuation for All Vehicles:

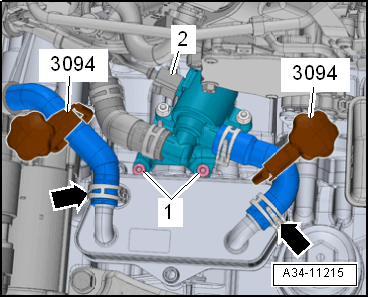

-- Loosen the hose clamps -arrows- and remove the coolant hoses from the transmission fluid cooler.

-- Remove the bolts -1- and move the Transmission Coolant Valve -N488- to the side.

-- Seal the open lines and connections with clean plugs from the :VAS6122  .

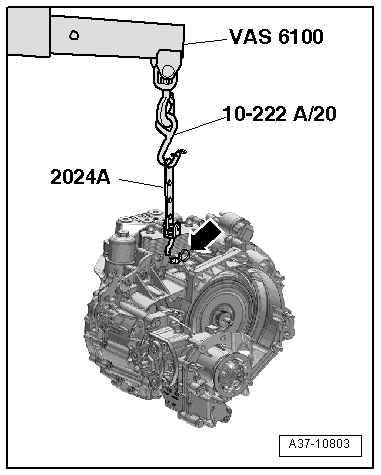

-- Attach the :2024 A  extension to the transmission lifting eyes and secure it with the connector lock -arrow-.

-- Hook the :VAS6100  with the :10 - 222 A /20  on the :2024 A /1  .

-- Remove the bolts -1 to 8- for the transmission/engine connection.

-- Remove the transmission from the engine.
